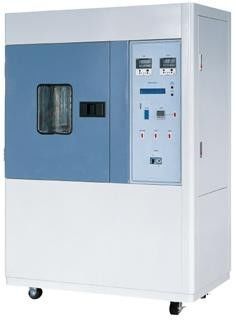

Plastic Industry Rubber Testing Equipment For High Temperature Aging Test
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-3010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Vertical Type | Feature: | Specimen Can Be Rubber Or Plastic, Test Anti-aging Performance |
| Weight: | 87kg | Alternative Name: | Anti-Aging Testing Chamber For Rubber |
| Highlight: | 304 SUS Rubber Testing Equipment,ISO5423 Rubber Testing Equipment,220V Rubber Testing Equipment |
||
Product Description
Rubber Testing Equipment For High Temperature Aging Test For Rubber And
Plastic Industry
1. Quick Details
|
Alternative name |
Anti-Aging Testing Chamber for rubber |
|
Function |
Test aging resistance of rubber and plastic by high temperature |
|
Type |
Three dimension |
|
Feature |
Specimen can be rubber or plastic Test Anti-aging performance |
|
Weight |
87kg |
|
Volume |
91*55*99mm |
|
Corresponding test standard |
ASTM-D1052,ISO5423,4643, HG/T 2411-2006 |
2. Description
Rubber aging test chamber is used for testing anti-aging performance of rubber and plastics.
Hang a specimen on the holder;
heat for certain time with setted temperature;
Take out and placed under normal temperature for 4 hours.
Test its tensile strength, elongation, and rest rate.
calculate the change rate of tensile and elongation before and after heat.
It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
Anti-yellowing: Aging test chamber stimulate the atmosphere environment, driven by the sun ultraviolet
radiation.It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to
atmosphere for 6 months.
3. Features
(1). Test UV anti-aging of rubber, tire by simulating sunlight.
(2). Test climatic resistance of products by simulating interactive environment of sunlight and moisture.
(3). Widely used in many industry such as rubber, printing ink and oil paint; resin and plastics, packaging;
adhesive agent; automobile and motorbike; cosmetic; mental; leather....
(4). Able to be custom made according to customer’s specific requirement.
4. Specifications
|
Model |
GX-3010-A |
GX-3010-B |
GX-3010-C |
|
Dimension of interior chamber |
40×40×45cm |
50×50×60cm |
60×60×60cm |
|
High temperature |
Normal temp.～200℃or300℃ |
||
|
Rotating speed of specimen stand |
5~10rpm |
||
|
Electric heat |
3KW |
4KW |
5KW |
|
motor |
1/4HP |
||
|
Volume |
91×55×99cm |
101×65×114cm |
88×83×125cm |
|
Weight |
87kg |
90kg |
150kg |
|
Power |
1∮,220V,15A |
1∮,220V,19.5A |
1∮,220V,26A |
Heating temperature and timing
|
Rubber specimen |
Plastic specimen |
||
|
90℃ |
96hr |
100℃ |
48hr |
|
100℃ |
48hr |
100℃ |
96hr |
|
120℃ |
96hr |
120℃ |
48hr |
|
120℃ |
120hr |
|
|
We can gauge the quality of your rubber using a variety of tests, including the MDR, the ODR, and the Durometer Hardness test. We can also test the viscoelasticity of your rubber sample with our Mooney Viscometer. MDR tests and ODR tests both determine the vulcanization characteristics of rubber compounds.
