UV Light Aging Resistance Test Chamber For Plastic Rubber Products
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-3050 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Vertical Type | ||
| Highlight: | rubber test equipment,rubber testing machine,Aging Resistance Test Chamber For Plastic |
||
Product Description

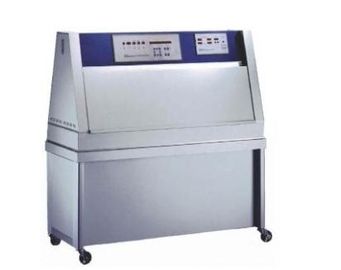

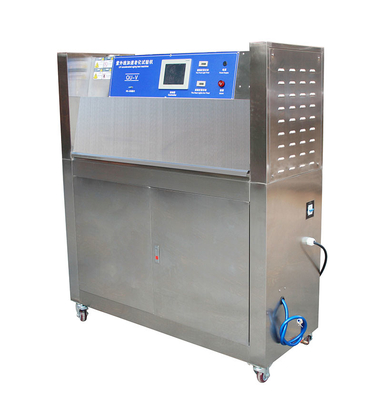

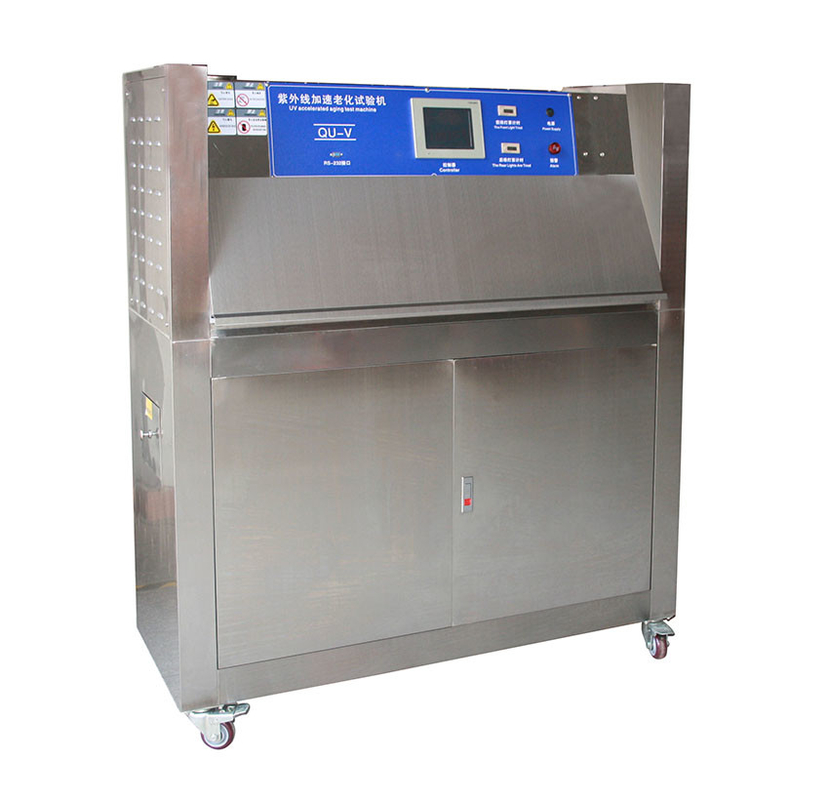

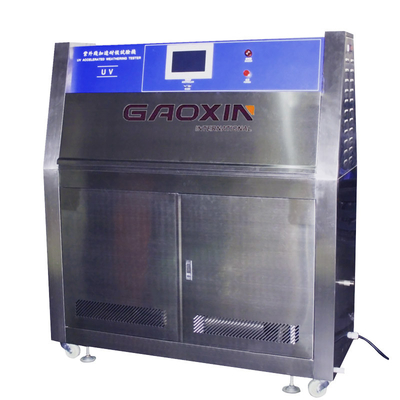

UV Light Aging Resistance Test Chamber For Plastic Rubber Products
1. Quick Details
|
Alternative name |
UV light climate test chamber |
|
Function |
Test UV light and weathering damage on specimen by simulating the climatic condition and accelerating the process |
|
Type |
climatic test chamber |
|
Feature |
Simulating weather influence or damage on the products; Anti-aging performance of specimen to UV light |
|
Weight |
56kg |
|
Volume |
530*1370*1350mm |
|
Corresponding test standard |
ASTM-D1052,ISO5423,4643, HG/T 2411-2006 |
2. Description
The UV light aging resistance test chamber simulate and recreate damage force of sunlight, rain and
dew on specimen, test its an-aging and climatic resistance capability of the products.
Method: the test chamber will let the specimen expose to controlled solar light and moisture
circumstance, raise temperature at the same time.
UV-light fluorescent lamp will be applied to simulate sunlight, and moisture condition will be realized
by condensation and spraying.
It is particularly designed for to test aging resistance of rubber, and also suitable in flight, automobile,
home appliance, and technology and research and so on...
3. Features
(1). Test UV anti-aging of rubber, tire by simulating sunlight.
(2). Test climatic resistance of products by simulating interactive environment of sunlight and moisture.
(3). Widely used in many industry such as rubber, printing ink and oil paint; resin and plastics,
packaging; adhesive agent; automobile and motorbike; cosmetic; mental; leather....
(4). Able to be custom made according to customer’s specific requirement.
4. Specifications
|
Model |
GX-3050 |
|
Temperature range |
R.T +10°－70° |
|
Moisture range |
≧90% RH |
|
Uniformity of temperature and humidity |
±2℃ and ±2% |
|
Fluctuation of temperature and humidity |
±0.5℃ and ±2% |
|
Standard size of specimen |
5×150㎜ or 75×300㎜ |
|
Center distance between the lamps |
70mm |
|
Distance from specimen to lamp |
50±3mm (adjustable) |
|
Wave length |
280-365mm |
|
Irradiance |
1000uw/cm2 |
|
Fluorescent tube |
L=1220, 40w, 8 UVB or 8UVA |
|
Standard configuration |
One shape cutter (one piece) |
|
Water source or consumption |
8 litre per day cleansing or purifying water |
|
Temperature controller |
TEMI 880 colorful LCD display |
|
programmable controller |
Humidity percentage display directly display (touch screen) |
|
Materials |
SUS304 |
|
Power |
1∮, AC220V, 5A |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
