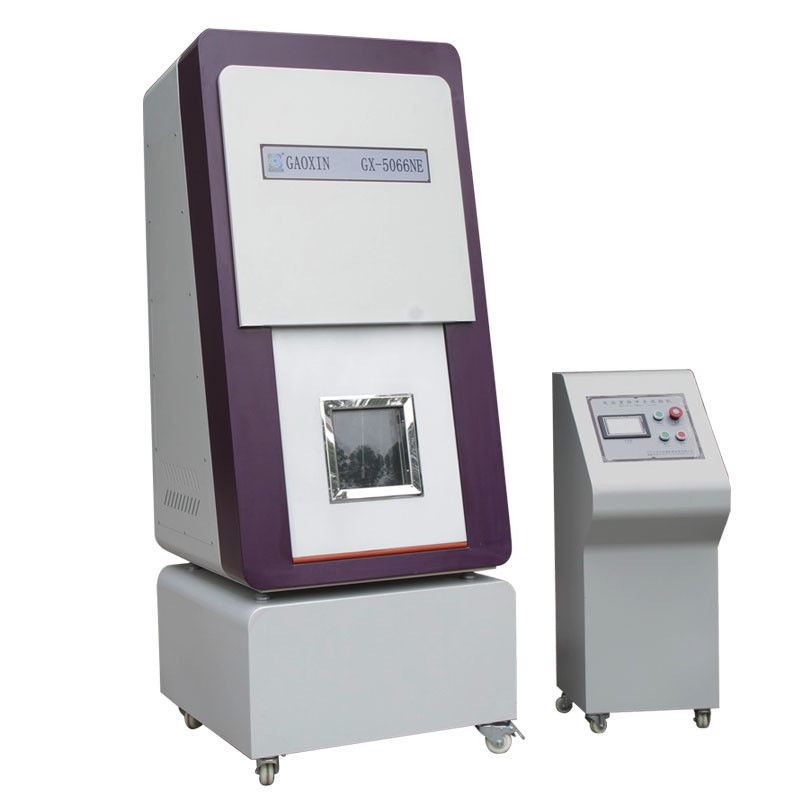

UN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester
Product Details:
| Place of Origin: | Gaoxin |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001 |
| Model Number: | GX-5066 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15~20 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Product Name: | Battery Impact Testing Machine | The Hammer Weight: | 9.1kg |
|---|---|---|---|
| Drop Height: | (610±25)mm | Test Simple Max Size: | 300*300*100mm (L*W*H) |
| Dimension: | 800x800x1520mm | Net Weight: | Approx. 320 Kg |
| Power Supply: | AC220±10%, 50/60HZ | ||
| Highlight: | battery testing instruments,battery testing machine |
||
Product Description
Battery Impact Testing Machine for UN38.3
Product Description
This machine is used to simulate a battery (or battery pack) that is subjected to a weight of 9.1kg±0.1kg from a free-falling state of 610mm±25mm(or 1000mm) Battery internal short circuit destructive test, by observing the test results used to asscess the safety performance of the battery.
Product specification
| Weight | 9.1kg |
| Impact height | 610 mm |
| Impact method | Lift the weight to some height and release the weight freely |
| Horizontal Bar | 15.8mm(5/8 inch) diameter |
| Test chamber material | SUS#304 Stainless steel |
| Sealing strip | Silicone foam |
| Air outlet | 120mm, in the back box |
| safe Door |
Single door with explosion-proof observing window and explosion-proof stainless steel mesh |
| Impact flat | Reinforce Stainless steel board
(if case of base plate sink because of gravity impact) |
| Power | AC220V,5A |
| Weight | About 105Kg |
| Control method: PLC+ wire control within 8 meters | |
| Height display: | PLC |
| Impact model | Automatic return to the original position, automatic grab the hammer |
| Max. tested sample size | 300*300*100mm (L*W*H) |
| venting: Located at the back of the cabinet, exhaust fan diameter 120mm, the duct length 100mm, convenient to connected with external laboratory high-power exhaust fan | |
| Equipment volume | 820*830*2030mm (L*W*H) |
| PLC controller | 400*450*1080mm (L*W*H) |
| Power supply: AC220V±10%, 10A 50Hz 1∮ | |
For more detail information please contact with us
