IEC62133 Laptop Battery Testing Equipment , Lithium Battery Washing Test Machine
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | GAOXIN |
| Certification: | ISO 9001 |
| Model Number: | GX-5065 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Function: | Testing Machine |
|---|---|---|---|
| Standard: | IEC62133-2012，GB31241 | Temperature Range: | 0℃~100℃ |
| Resolution Accuracy: | ±0.1℃ | Internal Box Material: | #304 Stainless Steel , Reinforcement At The Bottom |
| Power: | 220V/50HZ | Weight: | About 150KG |
| Highlight: | battery test equipment,battery testing machine |
||
Product Description
Laptop Lithium Battery Washing Test Machine/ Equipment
Specifications:
|
Temperature controller |
|
|
Temperature range |
0℃~100℃； |
|
Resolution accuracy |
±0.1℃； |
|
Temperature fluctuation |
±0.5℃； |
|
Temperature uniformity |
±2℃； |
|
Limit of low temperature |
0℃； |
|
Heating rate |
Average 3℃/min(from 0℃to 100℃,no-load nonlinearity) |
|
Cooling rate |
Average 1℃/min(from 100℃ to 0℃,no-load nonlinearity) |
|
Internal dimension |
W500×H600×D500mm |
|
Internal box material |
#304 stainless steel , reinforcement at the bottom |
|
Outward volume |
W1050×D 1500×H2100mm |
|
Power |
1∮,220V/50HZ |
|
Weight |
About 150KG |
|
Short circuit test |
|
|
Test load |
Generally 80kg (max of 100kg) |
|
Load resolution |
1/10000 |
|
Unit change |
kg, lb,N |
|
Load accuracy |
≤0.5% |
|
Strength maximum multiples |
7 paragraphs, automatically switch |
|
Displacement resolution |
1/1000 |
|
Displacement accuracy |
±0.05 mm |
|
Speed range |
0~20mm/min adjustable, generally 0.1mm/s(6 mm/min) |
|
Valid stroke |
100mm(not including the fixture) |
|
Test plate |
200×200mm(can customize) |
|
Voltage acquisition range |
0~20V |
|
Voltage resolution |
0.1mV |
|
Voltage acquisition frequency |
100 times per second |
|
Working table material |
Stainless steel with Teflon tape |
|
Short circuit pressure head size |
Cylindrical battery:10*10*15mm stainless steel+ 10*10*2mm NBR Square or prismatic battery:10*10*15mm stainless steel + 10*10*2mm NBR +5*5*2mm acrylic |
|
Pressure head material |
NBR: 10mm x 2mm, Acryl: 5mm x 2mm) |
|
Pressure direction |
From upper to lower |
Description:
The tester is designed according to the JIS C 8714:2007 and IEC62133 standard to simulate the forced short circuit under the predetermined environmental conditions. The stainless steel testing box can provide great temperature uniformity.

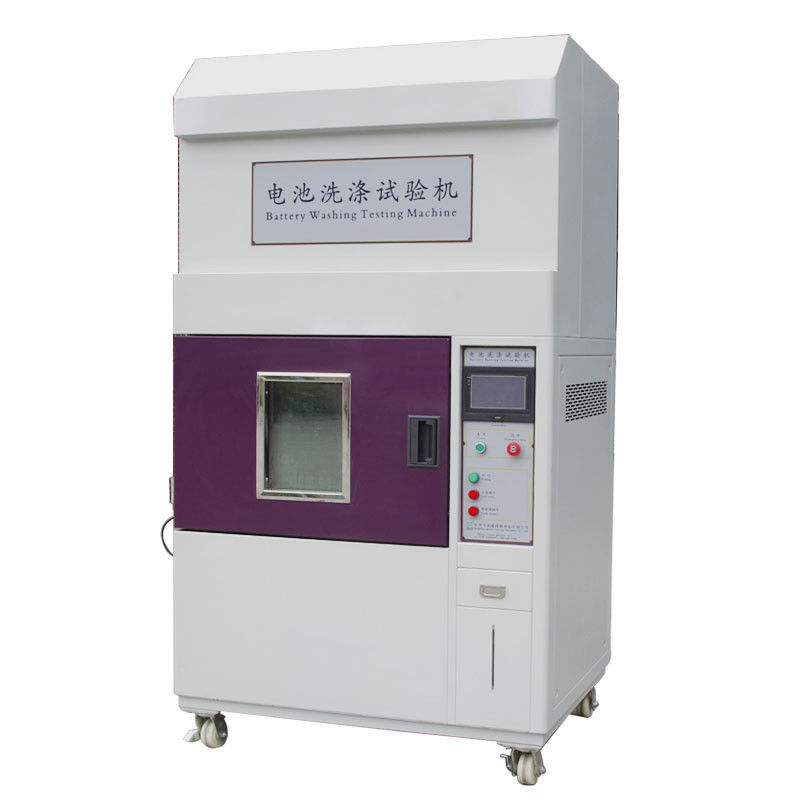

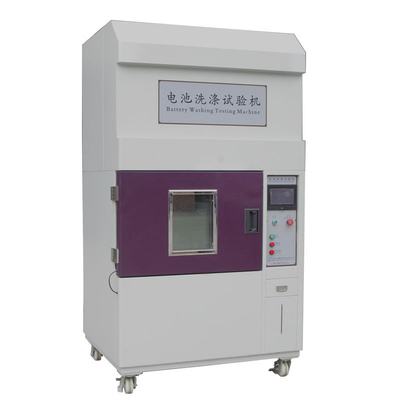

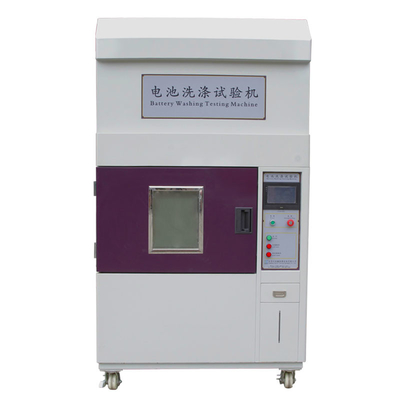

Picture:
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
