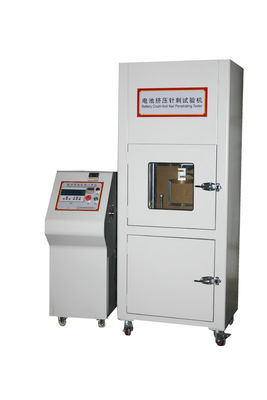

Battery Cell Tester Battery Crush Testing Equipment Hydraulic Servo Drive PLC Control
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001 |
| Model Number: | GX-5067 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 15 ~ 20 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Material: | Stainless Steel | Compression Space(mm): | 300*300*300(or Made By Client'demands) |
|---|---|---|---|
| Time Delay Function: | 0~9999h/m/s | Power Transmission Method: | Hydraulic , Servo |
| Resolution: | 1/10000 | ||
| Highlight: | battery test equipment,battery testing instruments |
||
Product Description
Battery Cell Tester Battery Crush Testing Equipment Hydraulic Servo Drive PLC Control
Product Description
This machine is suitable for simulation of various types of batteries in the use, transportation, storage and other processes, the battery is squeezed to determine the safety of the battery performance. Battery to no explosion, no fire as qualified.
Test Standards
UN38.3, IEC62133, SAE-J2464, UL1642, UL2054, YD 1268, YDB 032, IEC60086-4, MH/T 1052, MT/T1051
Product Specification
| Power transmission method |
Hydraulic Servo A) Two plates grip the battery B) When the tested sample is gripped by the two plates, it can begin to crush. |
| The pressure | 13kN |
| Accuracy of the force display | 0.1N |
| Resolution | 1/10000 |
| Compression Space | W300*D300*H300mm(or custom with the battery size) |
| Distance of Compression | 300mm |
| Test speed | 0~100mm/s |
| Holding time | 1s~9999h( arbitrary set) |
| CABLE PORT | Diameter 50mm on the left side of the chamber |
| Interior material | A3 steel paint drying |
| Exterior material | SUS#304 |
| Power | 380V,50~60HZ, |
| Dimension (mainframe) | 66*53*168cm |
| Dimension (controller) | 55*35*100cm |
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
