Push Button UL 1642 Projectile Tester , Anti Explosion Battery Burning Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-6053 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Silver |
|---|---|---|---|
| Controller: | Electric Controller | Test Standard: | UL 1642-2008, UL2054-2008, SJ/T 11170-1998, SJ/T 11169 |
| Fire Source: | Liquefied Petroleum Gas Or Methane | Usage: | Battery Burning Test |
| Applicable Object: | Lithium Battery | Falling Method: | Multi Angle (edge, Corner, Surface) |
| Highlight: | Push Button UL 1642 Projectile Tester,Anti Explosion UL 1642 Projectile Tester,Anti Explosion Battery Burning Chamber |
||
Product Description
Push Button Type UL 1642 Projectile Tester Anti-explosion Battery Burning Chamber
1. Quick Details
|
Alternative name |
Battery Combustion Tester |
|
Function |
Test battery resistance to flammability test until the battery exploded or burned away and check the burning time |
|
Source of energy |
Liquefied petroleum gas or methane |
|
Weight |
180kg |
|
Internal space |
300mm*300mm*300mm |
|
Corresponding test standard |
UL2054-2008, SJ/T11170, IEC62133, SJ/T11169 |
2. Description
Summarized of Lithium Battery Burning Tester
The machine is suitable for battery resistance to flammability test. Test, according to UL2054 test standard production.
Based on the standard of Lithium Battery Burning Tester
UL1642-2005, UL2054-2005, SJ/T11170-1998, GB889.4-2002
3. Features
a. The battery combustion tester is used for testing fire resistance of battery.
b. The result is according to the fire time to determine the fire resistance capability.
c. The test finish when the burning battery is exploded or burned away.
4. Specifications
|
Model |
GX-6053 |
|
burner |
Bunsen burner, the pipe mouth diameter is 0.375 inch (9.5 mm), length is about 100 mm |
|
Flaming combustion time |
1~9999s or 1M~99H59M adjustable |
|
Flame height |
10~75±2mm |
|
Test cover width |
12 inches (305 mm) X depth 14 inches (355 mm), octagon |
|
Test cover height |
24 inches (610 mm) |
|
Ignition devices |
Automatic ignition (remote control type control 8 meters of less than effective) |
|
Burning gas demand |
High purity liquefied petroleum gas (configured by yourself) |
|
Remote controlled distance |
7m, no solid block |
|
Aluminum nets diameter |
0.010 inch (0.25 mm) |
|
Test round hole surface diameter |
102mm |
|
Stainless steel nets cover |
Each distance between two feet for the opposite (610 mm), Nets cover nets high 1 feet (305 mm) |
|
Machine size |
W1100×D1030×H1110mm |
|
Power |
AC 220V 50HZ |
|
Rate of work |
2.0KW |
|
Weight |
About 180kg |

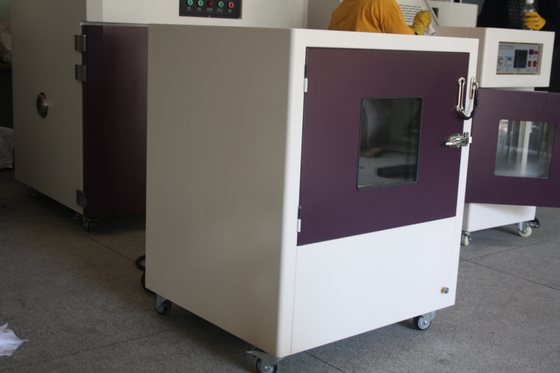

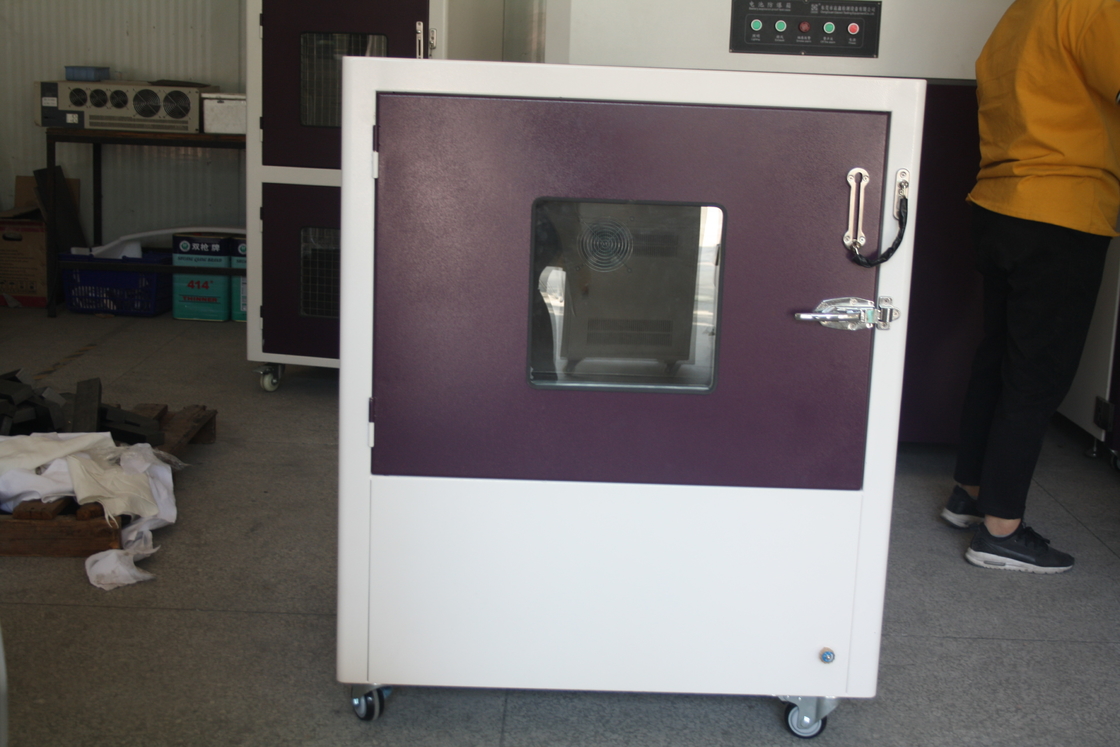

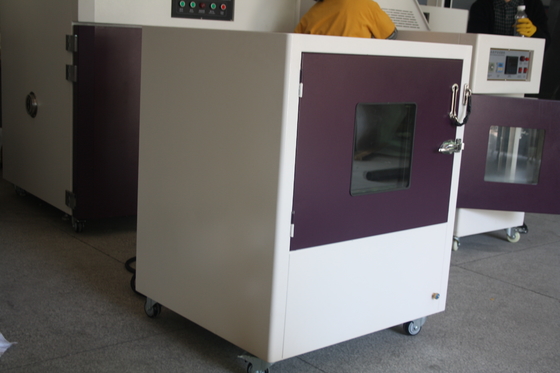

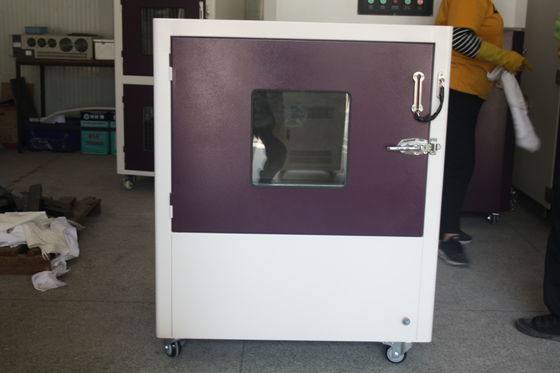

5. Pictures:
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
