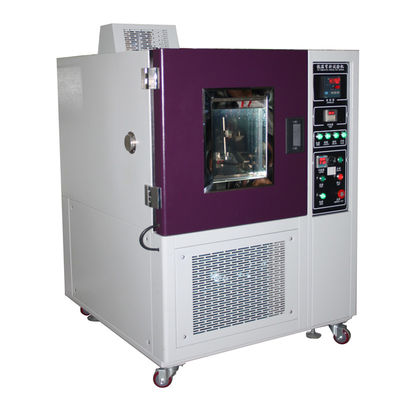

ASTM D 1790 Low Temperature Test Chamber Flexing Tester For Leather Cold Insulation Test
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-5010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Grey |
|---|---|---|---|
| Type: | Vertical Type | Temp. Range: | Normal Temp. To -30°C, -50°C |
| Temp. Accuracy: | ±0.5°C | Temp. Uniformity: | ±2°C |
| Speed: | 100±5cpm | Weight: | 400kg |
| Highlight: | material testing equipment,shoe testing machine,ASTM D 1790 Flexing Teste |
||
Product Description
ASTM D 1790 Low Temperature Test Chamber Flexing Tester for Leather Cold Insulation Test
1. Quick Details
|
model |
Standing style leather bending tester under low temperature |
|
Function |
Test for bending capability of leather, rubber, plastic material under low temperature |
|
Material: |
＃304 stainless steel |
|
Weight |
400kg |
|
Volume |
105×105×151cm |
|
Corresponding test standard |
ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705 |
2. Description
This tester is used for testing flexing resistance capability of rubber, plastic, shoe sole, shoe unit, mixable
leather material and parts, to get the material and parts’s hardy capability in cold or low
temperature. Simulate a cold condition, put the samples in to check the hardy capability.
3. Features
a. Testing result is accurate
b. Structure is simple and easy to operate
c. Made according to related corresponding international standard.
d. Able to custom according to customer’s specific requirement.
4. Specifications
|
Model |
GX-5010 |
|
Temp. range |
Normal Temp. to -30°C, -50°C |
|
Temp. accuracy |
±0.5°C |
|
Temp. uniformity |
±2°C |
|
Cooling down |
Normal temp. at 20°C, need 60min |
|
Counter |
LCD,0~999,999 times |
|
Speed |
100±5cpm |
|
Angle |
Ross:10~90° can adjustable, wind value is 22.5°(fixed), bending can set from 0~ 90° |
|
Interior |
About 400x500x500mm |
|
Dimension (WxDxH) |
105×105×151cm |
|
Weight |
About 300kg |
|
Power |
1∮,AC220V,40A (can specified basis on different countries) |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
