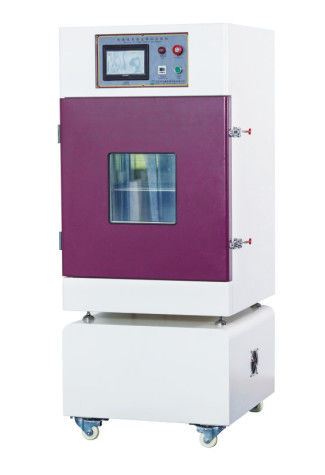

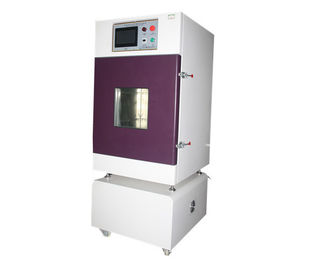

Battery Altitude Simulation Tester Vacuum Chamber with PLC Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-3020-ZC50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Pressure Range: | 0.5～100Kpa, Commonly Used Test Pressure 11.6 Kpa | Inner Box Size: | 500*600*500mm (width*height*deep) |
|---|---|---|---|
| Control Method: | PLC Man-machine Interface Control | Vacuum Display: | SMC Digital Display Vacuum Gauge |
| Timing Control: | Input Settings On The PLC Interface, Freely Set In 0-9999H (H/M/S Seco | Pressure Fluctuation: | ≤5% |
| Pressure Preservation Time: | 5% Reduction In 26 Hours | External Use Of Gas Source: | 0.6~0.8MPA |
| Highlight: | Testing Machine Instruments,Industrial Test Equipment,Battery Altitude Simulation Tester |
||
Product Description
Product name: Battery Altitude Simulation Tester
Model number: GX-3020-ZC50
Equipment description
This equipment is used for battery high-altitude and low-pressure simulation test. The batteries are tested under the negative pressure of 11.6kPa (1.68psi) for 6 hours. The tested battery can not be exploded, no fire, no smoke, no leakage. To be qualified. The equipment can automatically control the test period (for example, 6H), and real-time monitor the pressure change in the tank, Can realize automatic termination of the test process.
Specifications
| Inner box material | SUS304# First grade stainless steel, thickness 6mm |
| Outer box material | Cold rolled steel sheet baking treatment |
| Pressure range | 0.5～100Kpa, commonly used test pressure 11.6 Kpa |
| Storage partition material | SUS304# first grade stainless steel round bar |
| Observation window | Double tempered glass, size: 250*250*5 mm, internal glass with explosion-proof membrane, Square anti-projection net installed between double glass |
| control method | PLC man-machine interface control |
| Vacuum display | SMC digital display vacuum gauge |
| Timing control | Input settings on the PLC interface, freely set in 0-9999H (H/M/S seconds can be switched) |
| Pressure fluctuation | ≤5% |
| Pressure preservation time | 5% reduction in 26 hours |
| Safety device | Overcurrent protection fuse, built-in pre-overvoltage safety device, use pressure reducing valve to achieve over-voltage safety protection, automatic operation or automatic alarm after timing |
| net weight | 150KG |
| Equipment using power | 3∮, AC220V±10%, 50Hz, 10A, |
| equipment power | 2.5KW |
| External use of gas source | 0.6~0.8MPA |
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according to GB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
Our Products have passed the certification of China National Standard System. The products have been tested according to GB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
