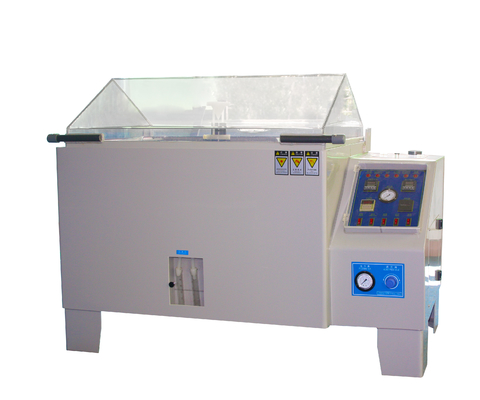

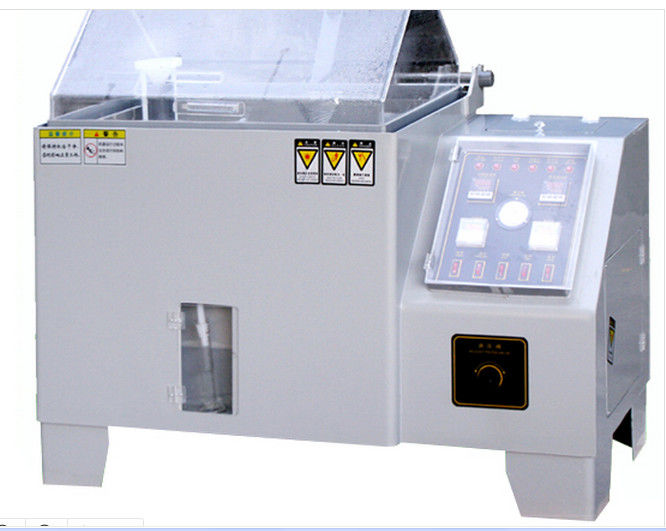

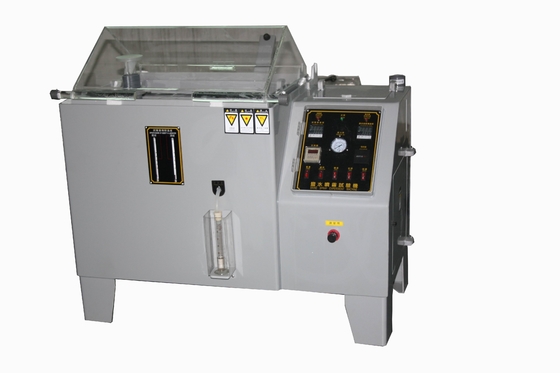

IEC 68-2-11 Continuous Spray Programmable Salt Fog Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-3040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Standard Basis: | IEC 68-2-11, IEC 68-2-52, JIS H 8502-1999, ASTM B 17, CNS 4158 H 2040 | Spraying Method: | Continuous Spraying |
|---|---|---|---|
| Test Chamber Temperature: | 35±1°C (NSS ACSS), 50±1°C (CASS) | Saturated Air Barrel Temperature: | 47±1°C (NSS ACSS), 63±1°C (CASS) |
| Spraying Volume: | 1.0~2.2ml/80cm²/h | PH Value: | 6.5~7.2 (NSS ACSS) 3.0~3.2 (CASS) |
| Tester Chamber Volume: | 108L, 270L, 480L, 800L, 1200L | Power Supply: | AC 220V |
| Highlight: | Programmable Salt Fog Chamber,IEC 68-2-11 Salt Fog Chamber,IEC 68-2-11 Salt Fog Test Machine |
||
Product Description
Continuous Spray Corrosion Salt Fog Tester Programmable Salt Spray Testing Chamber
Technical Specification
Spray mode: Continuous spray, intermittent spray, cyclic spray
Internal capacity: 108L, 270L, 480L, 800L, 1200L
Salt spray type: NSS, AASS,CASS
Test Chamber temp.: (35±1)℃ (NSS, AASS) (50±1)℃ (CASS)
Saturated air barrel temp.: (47±1)℃ (NSS, AASS) (63±1)℃ (CASS)
Test machine material: PVC board (high corrosion resistance, high temperature resistance,high humidity resistance )
Control system: High precision temperature controller, Omron timer, Temperature error: ±1℃, With full detection fault early warning system. Lights up when fault occurs
Automatic water supply system
With defog function
More detail information, please feel free to contact with us.
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
