CNS 4158 Touch Screen PLC Controlled Salt Spray Chamber For Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | CE |
| Model Number: | GX-3040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Material: | 304# Stainless Steel | Color: | Silver |
|---|---|---|---|
| Controller: | S.S.R, PID | Test Standard: | CNS, JIS, ASTM |
| Method: | Salt Test, Anti-corrosion Test | Usage: | Corrosion Resistance Test For Coating Surface |
| Applicable Object: | Surface Of Various Materials Handled By Painted, Coated | Spraying Method: | Continuous Spray Or Intermittent Spray |
| Highlight: | PLC Control Salt Spray Chamber,CNS 4158 Salt Spray Chamber,PLC Controlled Battery Test Chamber |
||
Product Description

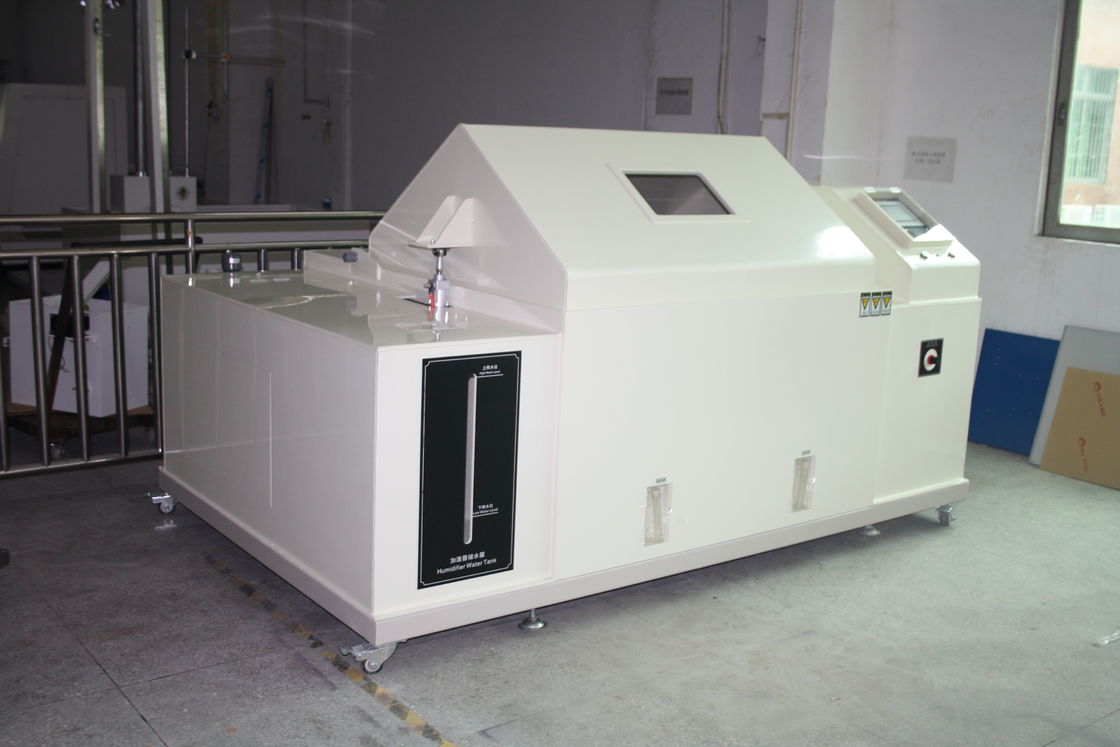

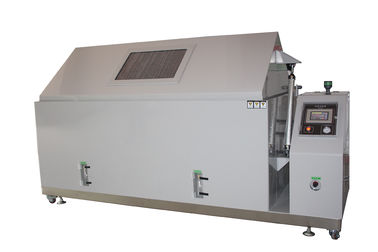

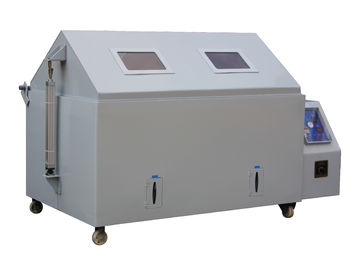

Touch Screen PLC Controlled Large Capacity Salt Spray Chamber for Battery Industry CNS 4158
1. Quick Details
|
Alternative name |
Salt Spray Tester For ASTM |
|
Function |
Test erosion resistance performance of surface of various materials |
|
Type |
Three layer |
|
Weight |
180kg |
|
Internal space |
300mm*300mm*300mm |
|
Corresponding test standard |
IEC, CNS, JIS, ASTM |
2. Description
The salt spray tester is used to test the corrosive resistance of products whose the surface was treated
with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.
3. Features
a. The tester is used for detecting corrosion resistance of surface of various materials
b. It is widely used
c. It is easy to operate and maintain.
Corresponding standard
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
4. Specifications
|
Model |
GX-3040-60 |
GX-3040-90 |
GX-3040-120 |
GX-3040-160 |
|||
|
Dimension of inside box (L×W×H) |
60×40×45cm |
90×60×50cm |
120×80×60cm |
160×100×60cm |
|||
|
Dimension of outside box (W×D×H) |
103×60×107 |
146×91×128 |
220×120×145 |
260×145×155 |
|||
|
Praying mode |
Continuous spray or intermittent spray (programmable) (optional) |
||||||
|
Materials of test chamber |
Imported PVC board and PP with thickness of 5mm |
||||||
|
Testing room temperature |
Salt test(NSS ACSS)35±1℃ corrosion test(CASS)50±1℃ |
||||||
|
Saturated air barrel temperature |
Salt test(NSS ACSS)47±1℃ corrosion test(CASS)63±1℃ |
||||||
|
Spray volume |
1.0~2.0 |
||||||
|
PH value |
Salt test(NSS ACSS)6.5~7.2 ; corrosion test(CASS)3.0~3.2
|
||||||
|
Testing room capacity(L): |
108 |
270 |
480 |
800 |
|||
|
Power |
1∮,AC220V,15A |
1∮,AC220V,20A |
1∮,AC220V,3A |
||||
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
