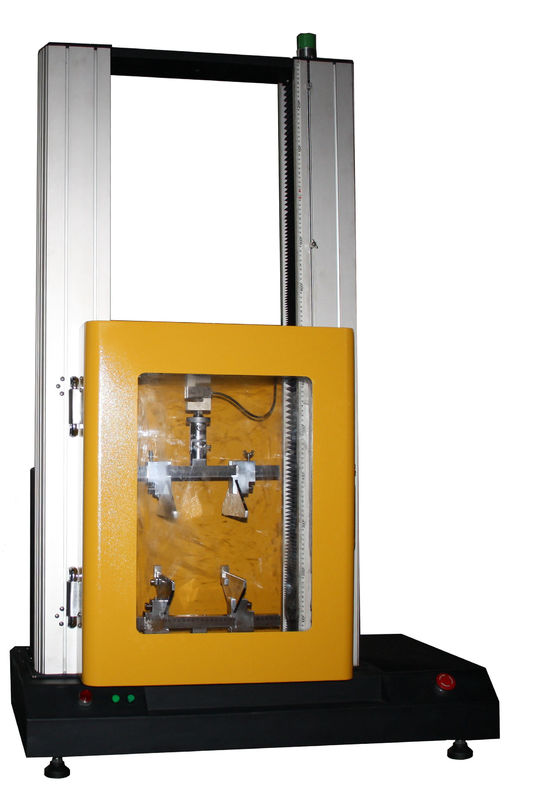

0.4KW 1000kg Load Bend Testing Machine With Servo Motor Drive
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 2008 |
| Model Number: | GX-8001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Bend Testing Machine | Kind: | Physical Test Equipment |
|---|---|---|---|
| Applicable Industry: | Ceramics, Glass, Timber | Max. Load: | 10T |
| Function: | Bending Test | Power: | Electronic |
| Test: | Third-point Loading; Central-point Loading | Effective Tensile Space: | 610mm |
| Force Measuring Accuracy: | Within 0.5% | Speed Range: | 0.001~500mm/min |
| Weight: | 152kg | ||
| Highlight: | 1000kg Load Bend Testing Machine,Servo Motor Drive Bend Testing Machine,0.4KW Bend Testing Equipment |
||
Product Description
0.4KW 10KN Glass Bend Testing Machine With Special Jig Servo Motor Drive
Product Description
The bend testing machine is used to test bending fatigue, bend strength of brittle materials, such as ceramics, glass, timber.
The bend testing can do test of central point bending and three-piont bending.
It can automatically calculate the maximum test force, breaking force value, upper, lower yield strength, tensile strength, compressive strength, flexural strength. Wiht a special fixture can use for glass products, glass screen, touch screen to do three-point and four-point bending test.
Fitted with special jig, the tensile tester is able to do three-point, or four-point bending test for glass products, mobile phone screen, LCD.
Specifications
|
The maximum loading |
1000kg(10KN) |
|
Accuracy class |
0.5 |
|
Force measuring range |
0.2%~100% |
|
Force measuring accuracy |
Within 0.5%( displaying value ) |
|
Resolution of test machine |
1/±250000 (max load) |
|
Load sensor |
A 5KN sensor |
|
Unit |
kgf ,lbf ,N, KN, Kpa, Mpa |
|
The extension configuration |
can be equipped with multiple sensors (choose) |
|
The effective width |
370mm |
|
The effective tensile space |
610mm |
|
The speed range |
0.001~500mm/min(servo motors) |
|
The displacement measurement accuracy |
Within ±0.5% ( displaying value ) |
|
The deformation measurement accuracy |
Within ±0.5% ( displaying value ) |
|
Safety device of testing bench |
Electronic limit protection |
|
Lifting device of testing bench |
Automatic control of fast / slow two choices, can crawl |
|
Returning function of testing bench |
Manual or automatic two choices, |
|
Overload protection |
Exceeding the maximum load of 10%, automatic protection |
|
Fixture configuration |
Three point bend fixture, four point bend fixture (can be customized) |
|
Power supply |
AC220V±10% 0.4KW (or be customized) |
|
Weight |
152kg |
|
Dimension(W×D×H) |
75×70×238cm3 |
transaction information:
|
Minimum Order Quantity |
1set |
|
Price |
negotiation |
|
Packaging Details |
Non-fumigation wooden box |
|
Delivery Time |
15 working days |
|
Payment Terms |
FOB Shenzhen, EXW |
|
Supply Ability |
50 sets per month, stock |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
