Double Structure Mobile Phone drum type Roller Drop testing machine for the drop test machine of phone tester
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-5618-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Drop Testing Machine | Power: | 220V 3A |
|---|---|---|---|
| Highlight: | 1000mm Drop Testing Machine,Single Drum Drop Testing Machine,1000mm Drop Tester |
||
Product Description

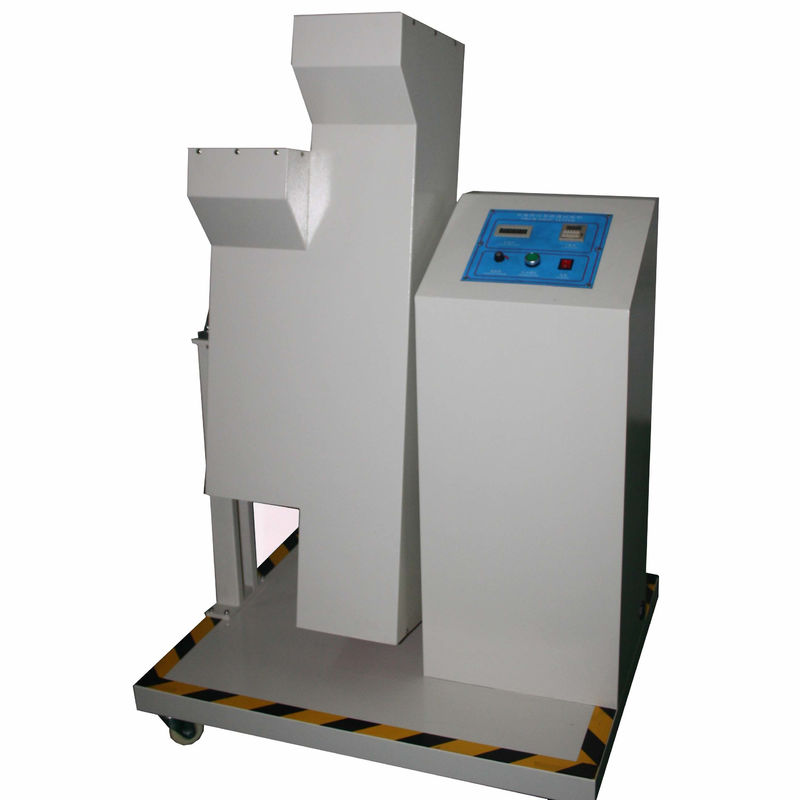

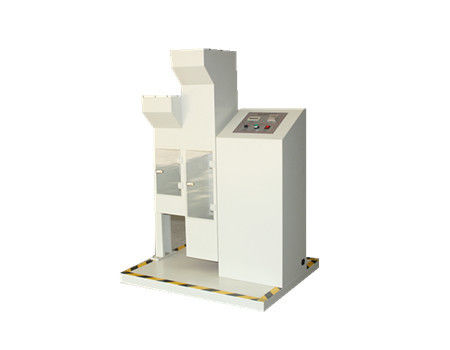

220V 3A Single Drum Drop Testing Machine 15 times/min For Mobile Phone
This machine is specially used for testing the durability of the shell of small electronic products, the performance of the internal structure to resist (heavy) fall and the adaptability to withstand repeated free fall.
1. Product Name:Single drum drop testing machine
2. Product Model:GX-5618-A
3. Test principle:
Simulate the user in the process of use, mobile phone and other small objects free falling action test.
Put the measured object into the drum manually → close the transparent cover and protective device → motor drives the drum to rotate counterclockwise → drop twice in one rotation.
4. Technical Parameter:
| Drive way | By the motor to realize the drum rotation |
| Drop height | 1000mm |
| Structure advantages | Drum structure to ensure the mobile phone random drop, avoid non - standard friction and collision movement |
| Location number | Simplex bit |
| Mode of operation | Button |
| Range of fall height | 1000mm |
| Drop speed | 5-15 times/min |
| Counter | LED, 6 bit counter |
| Power | 300W |
| Use the power supply | 220V, 3A |
| Overall dimensions | 700㎜*1200㎜*1200㎜ |
| The weight of the | 60kg |
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
