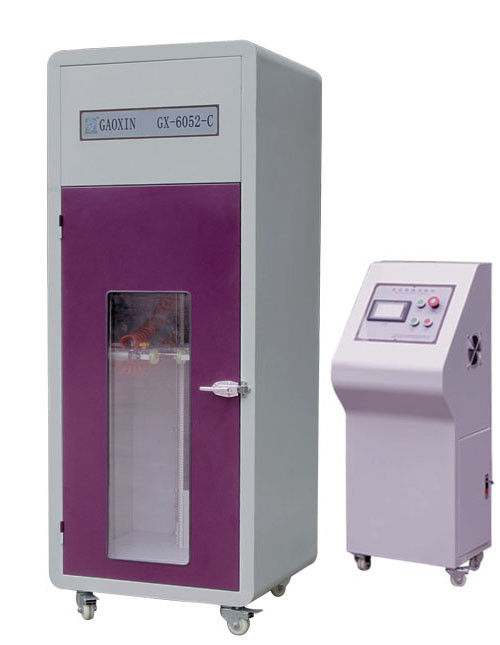

UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | GAOXIN |
| Certification: | ISO 9001 |
| Model Number: | GX-6052-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen,T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Control Mode: | PLC Control Mode | Height Setting And Display: | PLC |
|---|---|---|---|
| Clamping Method: | Pneumatic Adsorption | Sample Weight: | 3kg±100g |
| Drop Height: | 300~1500mm(adjustable) | Drop Floor: | Concrete, Wood And Steel(Optional) |
| Highlight: | UN38.3 Free Fall Drop Tester,IEC62133 Free Fall Drop Tester,Drop Height Adjustable Battery Testing Machine |
||
Product Description
Battery Testing Machine For The UN38.3 / IEC62133 Drop Height 300 ~ 1500mm Adjustable Electronics Free Fall
1. Product Name:Battery free drop tester
2. Product Model:GX-6052-C
3. Test standard:UN38.3,UL1642,UL2054,QC/T 743-2006, QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241.
4. Scope:
The tester is applicable for the free drop test of battery, mobile phone, Intercom, electronic dictionaries, building intercom, and CD/MD/MP3 and other small consumer electronic products and components
5. Feature:
Each of the samples is to be dropped from the height of 1 m (3.28ft.)so it strikes a concrete surface in the position that is most likely to produce the adverse results. Each sample is to be dropped three times. The sample should not explode or catch fire after the observation period.
Pneumatic structure is used to release the sample and the drop height can be adjusted to certain height shown on the altitude scale.
6. Technical Parameter:
| Sample weight | 3kg±100g |
| Drop height | 300~1500mm(adjustable) |
| Height adjust | By the altitude scale |
| Clap method | Pneumatic adsorption |
| Drop floor | Concrete, wood and steel(Optional) |
| Drop method | Multi-angle(Ling, the Angle, the surface) |
| Base size | 500×600×10mm |
| Air pressure | 1MPa |
| Volume | 500×900×1650mm |
| Weight | 80kg |
| Power | 1∮ ,220V,3A |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
