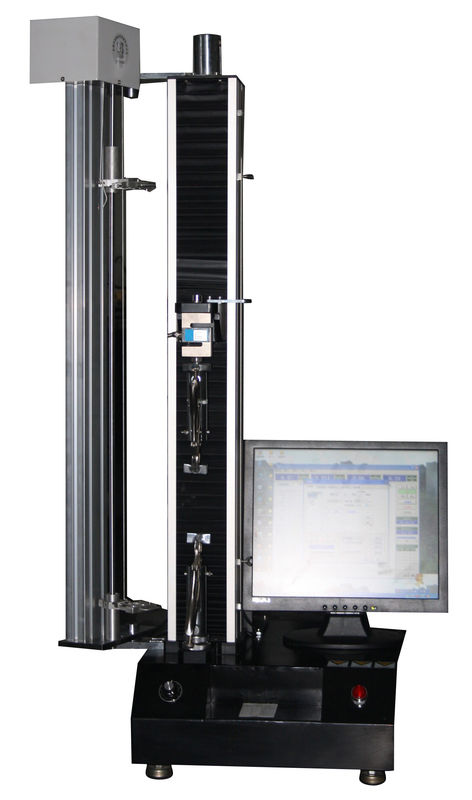

90 Degree Adhesive Bond Tearing Strength Tester 220V With 500kg Load
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO9001: 2008 |
| Model Number: | GX-8002-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15-25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Funxtion: | Fabric Tensile Strength Tester | Type: | Physical Test Equipment |
|---|---|---|---|
| Applicable Industry: | Leather, Paper, Fabric | Max. Load: | 500kg |
| Tests: | Tensile Test, Bending Test, Compression Test | Power: | Electronic |
| Control: | Computer Control | Valid Stroke: | 650mm |
| Motor: | AC Motor | Speed Range: | 25~500mm/min |
| Weight: | 152kg(or Customized) | ||
| Highlight: | Tearing Strength Tester 220V,90 Degree Adhesive Bond Tearing Strength Tester,500kg Load Universal Materials Tester |
||
Product Description
Tester Aan The Equipment Machine For The Universal Materials Tester 90 Degree Adhesive Bond Tearing Strength Tester
1. Equipment summary:
The tensile testing machine can be used for various tests including bending test, tensile test, peeling test, bond strength test and so on. Tensile strength testing machine is mainly applied to test non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
Fot the peel force test, the testers use a motorized test stand, digital force gauge and peel fixture to apply tension to a safety seals, tapes and laminates.
2. Technical parameters:
|
Model |
GX-8004 tensile strength testing machine |
|
Load range |
5, 10, 20, 50, 100, 200, 300kg |
|
Unit exchange |
kgf,gf,Ton,lbf,N,kN |
|
Accuracy of load |
± 0.5% of indicated value |
|
Load resolution |
1/10,000 |
|
Deformation measuring resolution |
0.001mm |
|
Action |
Tensile and compression function |
|
Load Magnifying Rate |
Variable speed |
|
Max. tensile space |
800mm (mot including fixture) |
|
Valid test width |
400mm |
|
Test speed |
25-500mm/min |
|
Input mode of speed |
Knob |
|
Speed accuracy |
± 0.5% |
|
Displacement accuracy |
0.001mm |
|
Data sampling |
200r/s |
|
Spacing function |
10 spacings for each time, the smallest and largest data will display and average value will be calculated automatically |
|
Display |
Computer (s) |
|
Motor |
AC motor |
|
Control system |
Computer |
|
Weight |
70kg |
|
Standard Accessories |
1 Sensor; A pair of tensile fixture; a pair of universal functional fixture; |
|
Power |
220V/50HZ |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
