300mm Fall Height Pneumatic Directional Drop Tester For Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-5617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 25 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Highlight: | 300mm Fall Height Drop Tester,0.5MPa Drop Tester,300mm fall height drop test apparatus |
||
|---|---|---|---|
Product Description
Customized Mobile phone directional drop teste
The main function of this machine is to evaluate the effect of accidental falling behind of the product on the quality of the product when the product is in use. It is suitable for the drop test of the original posture and acceleration of small electronic products such as mobile phone, PDA, telephone, electronic dictionary, CD, MP3, adapter and so on.
This model is currently the most widely used model in the mobile phone manufacturing industry: Huawei Technology, ZTE, SHARP Communication, Samsung, TCL, Better Life, Desai electronics and other products can complete 0°, 45°, 90° Rind, Angle, surface drop with multi-angle device.
1. Product Name: Mobile phone directional drop tester
2. Product Model: GX-5617
3. Technical Parameter:
| Control mode | PLC man-machine touch interface |
| Maximum test height | 300 -- 2000mm |
| Maximum weight drop | 1kg |
| Minimum fall height | 300mm |
| Maximum test product size | 100×100mm (more than this size needs to be customized) |
| Test landing point | 0°, 45°, 90° (edge, Angle, surface) |
| The counter | 0 -- 999999 times |
| Drop Angle error | About 1 ° ~ 3 ° |
| Switching mode of vacuum sucker | Free electronic control switch of three vacuum suckers (independent) |
| Falling mode | Pneumatic fall |
| Lifting mode | Electric hoist |
| Use an air source | 0.5 MPa |
| The power supply | AC220V 50Hz |
| Machine weight | 75Kg |
Remark: It shall be used with air compressor (supplied by customers).

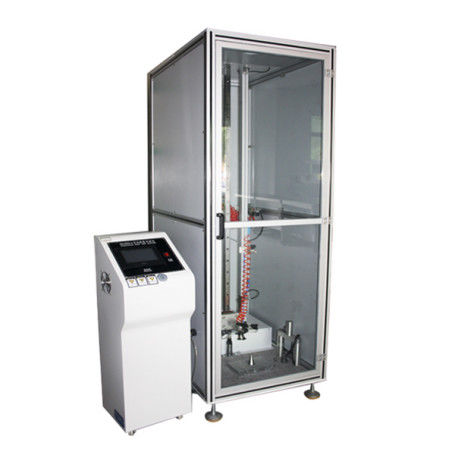

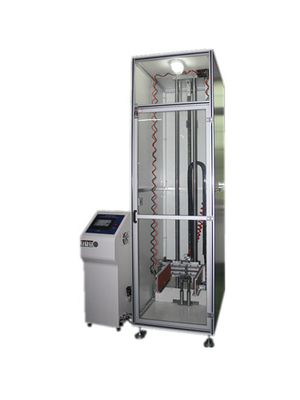

4. Picture
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
