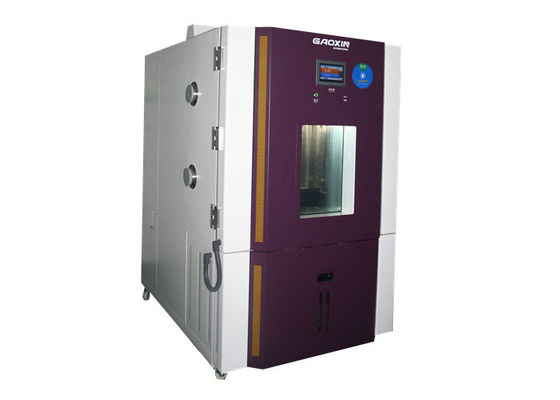

High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery

High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO 2008
Model Number: GX-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, T/T
Supply Ability: 10 set/month
Get Best Price Contact Now

Detail Information
Product Name: Constant Temperature Humidity Test Chamber Type: Environmental Testing Chambers
Operate Interfaces: Korea TEMI 880 LCD Touch Screen Applications: Electronic, Electrical Equipment And Vehicle Etc
Temperature Range: -70°C~150°C Humidity Range: 20%~98% R.H
Test Chamber Volume: 80L, 150L, 225L, 408L, 800L,1000L Heating Rate: Average 3 °C/min
Cooling Rate: Average 1 °C/min
Highlight:

environmental testing chamber

,

environment test chambers

Product Description



Programmable High Low Temperature Chamber Environmental Simulation Test Chamber



1.Specifications



Mode

GX-3000-80L

GX-3000-150L

GX-3000-225L

GX-3000-408L

GX-3000-800L

GX-3000-1000L

Inner Size
 W×H×D(cm)

40×50×40

50×60×50

60×85×80

60×85×80

100×100×80

100×100×100

Outside Size
W×H×D(cm)

92×140×90

105×150×110

105×165×120

115×175×140

160×190×160

160x190x180

Volume (L)

80 L

150L

225L

408L

800L

1000L

Temp and Hum
 Range

A:-20°C~150°C  B: -40°C~150°C   C: -60°C~150°C   D: -70°C~150°C
 RH20%-98%

Function

Fluctuation

±0.5°C     ±2.5%RH

Deviation

±0.5°C-±2°C    ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller analytical accuracy

±0.3°C       ±2.5%RH

Material

Inner Wall

SUS #304 Stainless steel

Outer Skin

#SUS 304 Stainless steel

Heat Preservation

High temperature resistant,
High chlorine acid b vinegar foam insulation materials

Wind Cycling Way

Centrifugal fan-broadband type forced air circulation

Refrigeration Way

Single stage compression refrigeration

Refrigerater

French Tecumseh

Refrigerants

R4O4A USA dupont environmental protection refrigerant(R23+R404)

Condensing Way

Air-cooled or water-cooled

Heater

Nickel chrome heating wire heater

Humidifier

Semi-closed steam and wet

Water Suplying Way

Automatic cycling water supply

Standard Accessories

1 Observe window(double-deck cavity toughened glass),
1  50mm test hole in the left,
1  PL inner chamber lamp,
2 clapboards,
1 bag of wet and dry bulb,
3 fuses,
1 power line.

Safety device

Non- fuse-switch(compressor overload,
refrigerant high low voltage,
over-humidity and temperature protection,
Protection switch,fuse stoppage warning system





2. Description



Environment test chamber of Programmable Constant Temperature &Humidity Test Chamber can simulate different environment condition. It is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operation time.



3.  Features



1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).
6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position

High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 0

High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 1
High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 2
High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 3
High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 4
High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 5
High And Low Temperature Humidity Heat Cycle Environmental Simulation Test Chamber For Battery 6
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
