AKRON Abrasion Performance Footwear Testing Equipment BS903 Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | BS903、GB/T1689、CNS734、JIS-K6264 |
| Model Number: | GX-5014 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 500-2000 Per set |
| Packaging Details: | international standard strong package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Grinding Wheel: | External Diameter Of 150mm、thickness Of 25mm Granularity Of 36# | Sample Incline Range: | 0~ 35°adjustable |
|---|---|---|---|
| Sample Axle Rotate Speed: | 76 2 R/min | Balance Hammer: | 2.5Kg |
| Weights: | 2lb , 6 Lb | Counter: | LCD Display,0~999,999 |
| Volume: | 57cm ×52cm ×45cm | Weight: | 57kg |
| Highlight: | shoe tester,shoe testing machine |
||
Product Description

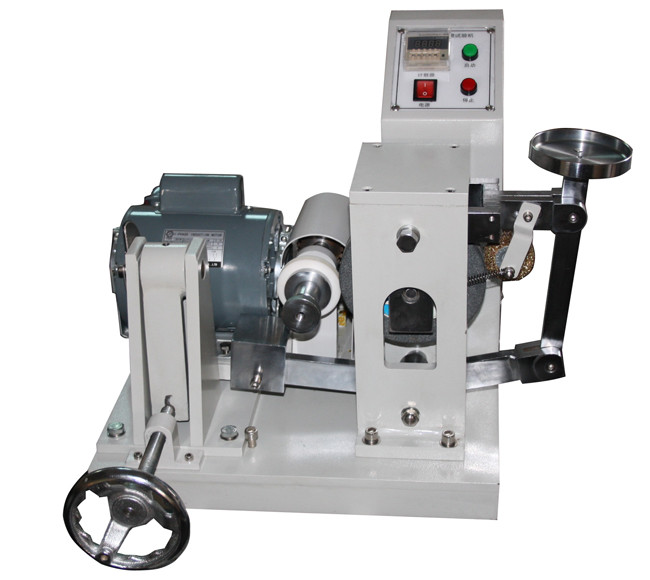

BS903 Standard Button Type AKRON Abrasion Performance Footwear Rubber Testing Machine
1. Product Name:AKRON Abrasion Tester
2. Product Model:GX-5014
3. Product Application: The testing machine is used to test the abrasion resistance of rubber products like shoes sole, tires and track chariot with the help of balance. The automatic electronic counter can set the rotation times and stop automatically.
4. Test Standard:BS903,GB/T1689,CNS734,JIS-K6264
5. Product Structure:
1. Control Panel
2. Weight plate : place weights
3. Balancing pole
4. Copper brush : clean dust on the wheel
5. Wheel : rub sample
6. Fixing nut (Sample )
7. Fixing nut ( hammer )
8 . Motor: drive machine running
9. Specimen holder clip : place the sample
10. Hammer: for adjustments to make the wheel in balance.
11. Pointer angle : angle indicates the sample angle , the more general test is scheduled to 15
12. Dial: with indicator pin indicates the angle scale.
13. Angle of the screw: Resize inclination of the test specimen
6. Technical Parameter
|
Items |
Parameters |
|---|---|
|
Grinding Wheel |
External diameter of 150mm,thickness of 25mm granularity of 36# |
|
Sample Incline Range |
0°~ 35°adjustable |
|
Sample Axle Rotate Speed |
76± 2 r/min |
|
Balance Hammer |
2.5Kg |
|
Weights |
2lb , 6 lb |
|
Counter |
LCD display,0~999,999 |
|
Volume |
57cm ×52cm ×45cm |
|
Weight |
57kg |
|
Power |
1∮ AC 220V 50Hz 3A |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
